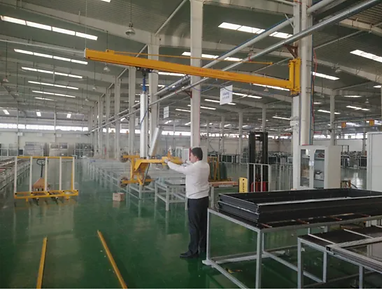

Glass jib crane for glass handling
Glass jib crane for glass handling
Glass jib crane for glass handling
Glass jib crane for glass handling
Glass jib crane
Avenir Light is a clean and stylish font favored by designers. It's easy on the eyes and a great go-to font for titles, paragraphs & more.
Glass jib crane
Product Advantages
-
Cost-effective & labor-saving: Simple structure for easy manufacturing and low cost, shares the load of main lifting equipment, reduces production costs and improves efficiency.
-
Versatile application: Suitable for factories, mines, production/assembly lines (especially for partial goods conveying), usable indoors and outdoors, flexible installation (e.g., fixed-column type needs no other buildings for fixation).
-
Safe & reliable operation: Precise operation, low noise, stable performance, minimizes potential operational risks.
Product Features
1. Compact Structure: Space-saving tight design with stable performance.
2.Flexible Rotation: Column-type offers 270°/360° arm rotation (top/bottom holder connection), ensuring flexible operation.
3.Durable Components: Sealed box-structured cantilever beam for enhanced durability and load-bearing capacity.
Basic Attributes
-
Types: Jib cranes are divided into three types: column type, wall-mounted type, and I-steel type.
-
Components of Column Cantilever Crane: Composed of a column, arm beam, swing mechanism, and lifting mechanism. The column is equipped with a swing mechanism and an arm connection flange. The hoist or suction lifter is installed on the I-steel and can move along the longitudinal direction of the beam. The swing mechanism drives the cantilever beam to rotate through a gear transmission mechanism.
-
Installation of Column Cantilever Crane: The column of the column cantilever crane is fixed on the foundation flange, which is installed and secured to the concrete base with connecting bolts.
Specification
